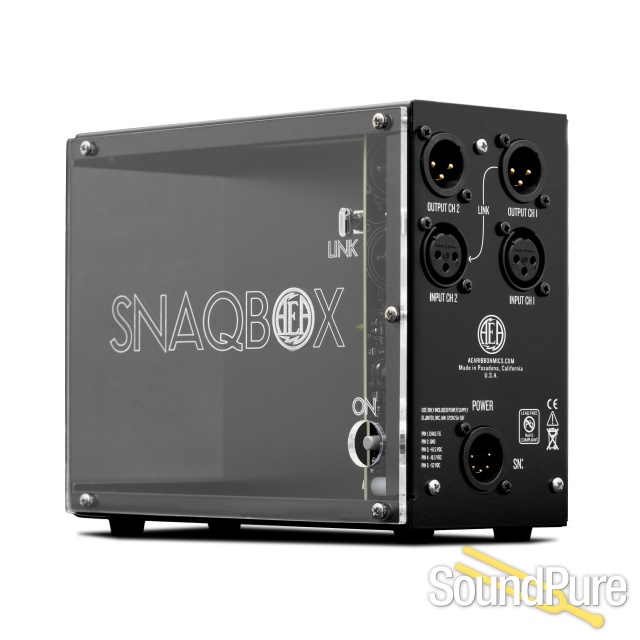

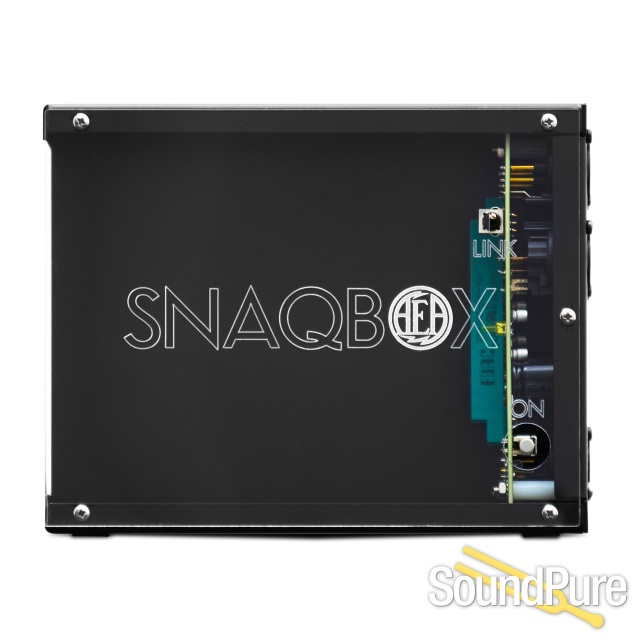

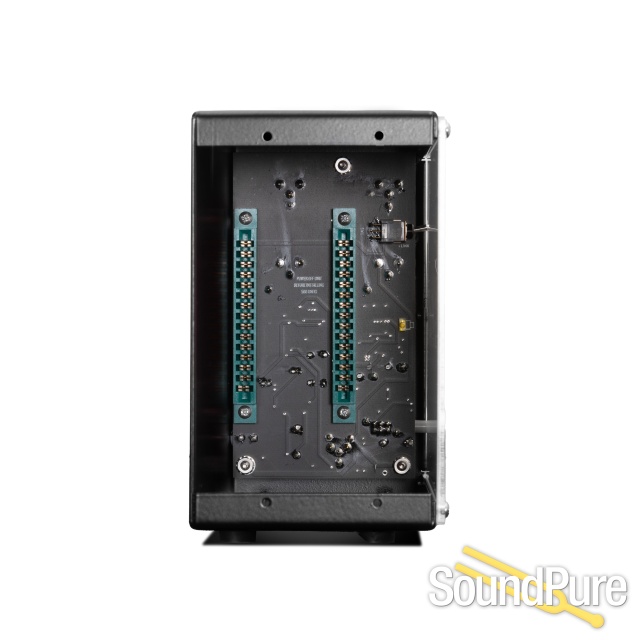

Updated for 2026, the SnaqboxTM V2 can now support up to 500mA per unit, ensuring compatibility with nearly all 500 series modules. V2 units will feature ‘V2’ laser etching on the acrylic side (not pictured). The AEA SnaqboxTM is a transparent, two-channel, 500-series chassis. The unit is powered by an external switching power supply to keep switching noise awasy from the unit. The acrylic sideplate of the unit comes in either clear or fluorescent orange. The chassis is made of steel and the bottom of the SnaqboxTM is affixed with durable rubber bumpers. All XLRs on the SnaqboxTM are Neutrik brand. Five 1⁄4” flathead 4-40 screws are included with every unit.
The SnaqboxTM features a CASCADE switch. When engaged, the audio output of Channel 1 is internally routed to the input of Channel 2. The cascade switch disconnects the connection from the XLR input of Channel 2, but does not disconnect the output of Channel 1 (thus allowing dry and wet outputs).
Feature set
- Durable Steel Chassis with Clear or Orange Acrylic Sideplate

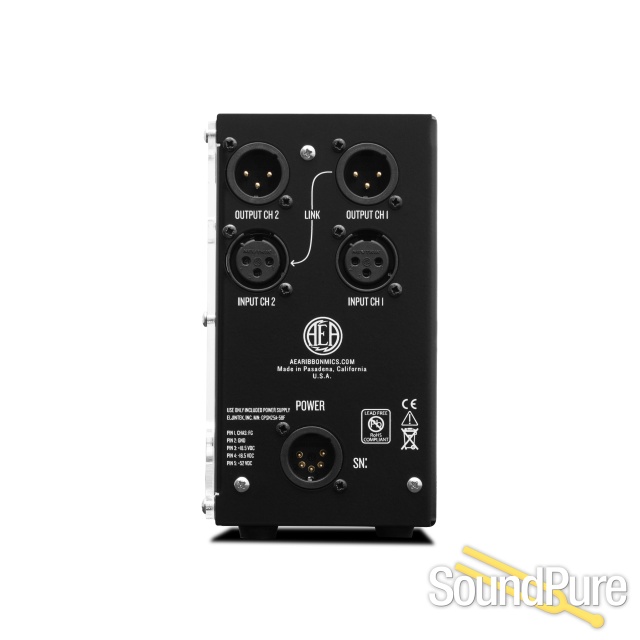

- XLR I/O
- Cascade Switch
- External Switching Power Supply
- Made in the USA
- Power:
- +/-16V, 500mA (max per unit)
- +48V, 13mA (per slot)
- Dimensions:
- Length: 7.4”
- Width: 3.3”
- Height: 5.9”
- Weight:
- Unit weight: 2.2lb (~998g)
- Shipping weight: 4.6lb (~2.1kg)
