From API Audio

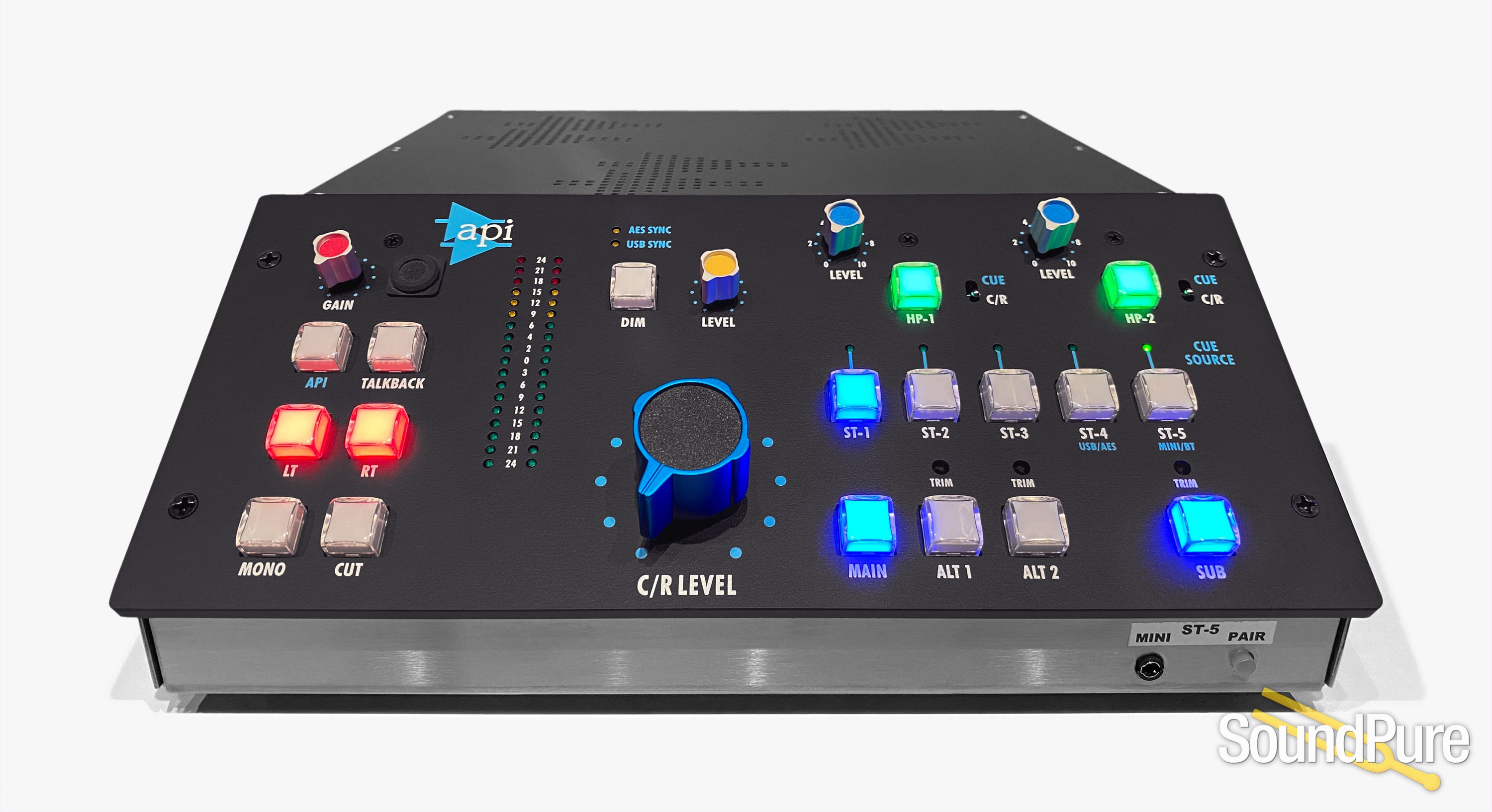

Building on its rich heritage of manufacturing the highest quality mixing and recording consoled, API proudly introduces the new MC531 Monitor Controller. Featuring the same level of craftsmanship found throughout API's entire product line, the MC531 offers a stand-alone version of the monitoring functionality built into the center section of API's legendary analog consoles. Specifically designed to include fully-featured monitor controller for DAW workflows, the MC531 can integrate seamlessly into any audio production environment where functionality, ease of use and an accurate reference of each audio source is required.
Drawing inspiration from the monitor control modules of all API consoles, the MC531 features a Main and two Alternate stereo outputs, the latter having individual trims for speaker level matchin. Programmable subwoofer integration allows the user to link the Sub with the Main and/or either of the Alternate outputs. With a total of seven selectable stereo input sources (three analog line-level inputs, AES, USB, plus 3.5mm and Headphone outputs and a built-in Talkback mic complement the feature set. Of course, the classic API 41-detent Control Room Knob is right at your fingertips.

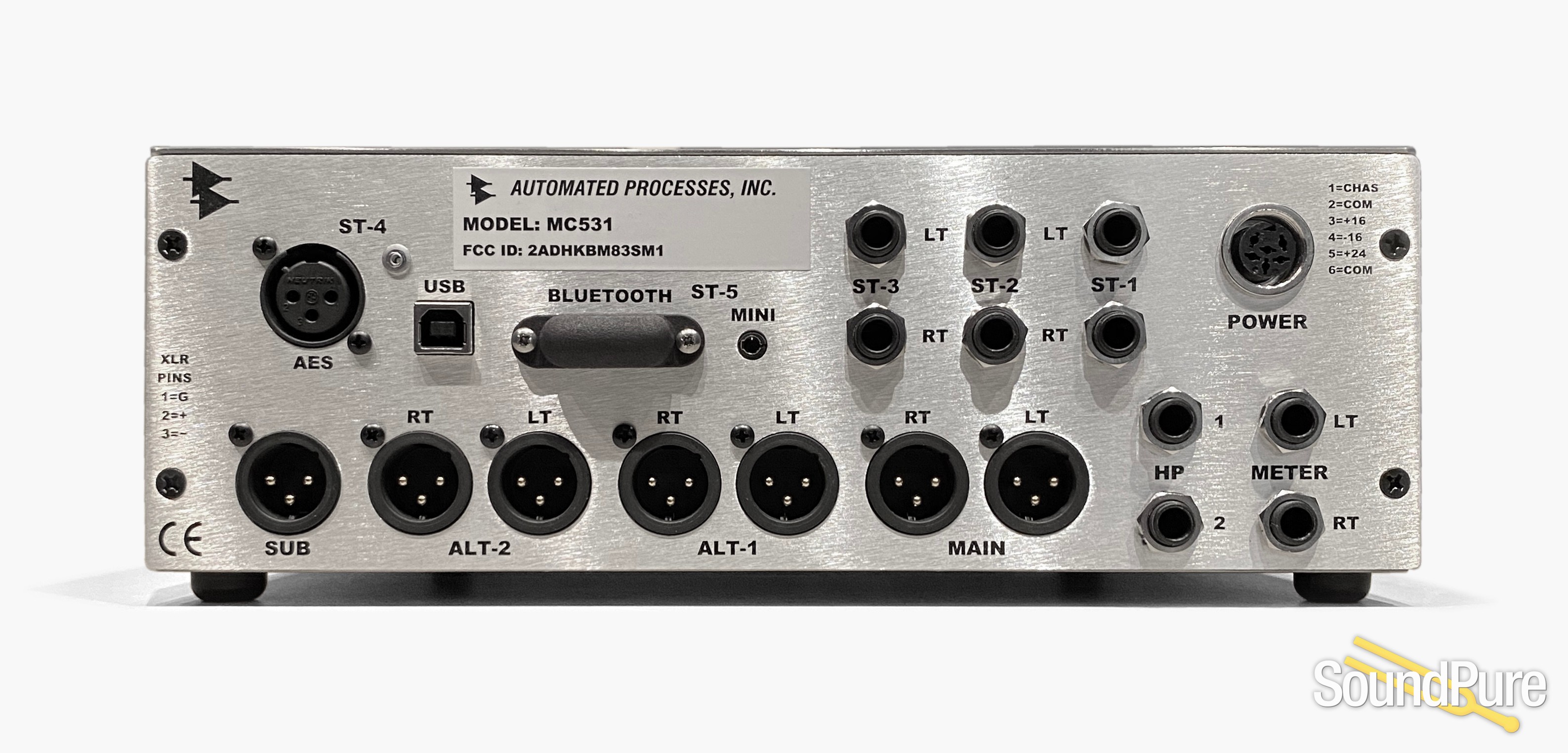

Input Connections:
ST-1, ST-2, ST-3: 1/4" Balanced Analog, 30k Ohm Input Impedance
ST-4: Digital Input, USB Type-B, XLR female AES3
ST-5: Bluetooth, Mini Jack front and rear in parallel
Output Connections:
Control Room Outputs: XLR, selectable electronic or transformer balanced, 75 Ohms
Meter Output: 1/4" Balanced
Headphone: 1/4" Stereo
Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: +/- 0.5dB 20Hz to 50KHz
Signal to Noise Ratio: 115dB
Power Consumption: 16 Watts
Unit Size: 11.0" x 12.75" x 4.0"
Unit Weight: 8.5lbs
