The Gefell M990 is a large diaphragm condenser tube microphone that employs the Gefell M9 gold evaporated capsule. This pressure gradient transducer is combined with the latest tube amplifier circuit design for exceptionally low self-noise and added sensitivity. The result is a studio microphone that has all of the character and feel of a vintage tube mic with the added benefit of lower noise, wider bandwidth and stunning detail.



Design Features

Since the dawn of the large diaphragm condenser, Gefell has led the way. The Neumann-Gefell UM57 was the first multi-pattern large diaphragm microphone and today, the UM92.1S follows the same tradition. The M990 takes another step forward with the M9 capsule, a full-size 1-inch (25mm), 24 karat gold evaporated diaphragm.

The M9 capsule is housed on a "triangulated" pedestal that deflects unwanted sound refractions away from the capsule reducing phase cancellation and comb-filtering. This results in exceptional uniformity throughout the audio bandwidth while assuring an ultra-smooth transition from on-axis to the all important off-axis response. The impressive cardioid pattern provides excellent rear-rejection to discard unwanted noise, making the M990 particularly good for high noise environments.

The vacuum tube preamplifier is unique in that it employs a pentode tube, working as a triode to achieve the M990's outstanding sonic characteristics. These are housed in a slim-line tubular body with a distinctive dark bronze finish. The M990's dark color is specifically designed to reduce visibility on stage and during television broadcast.



Using the M990

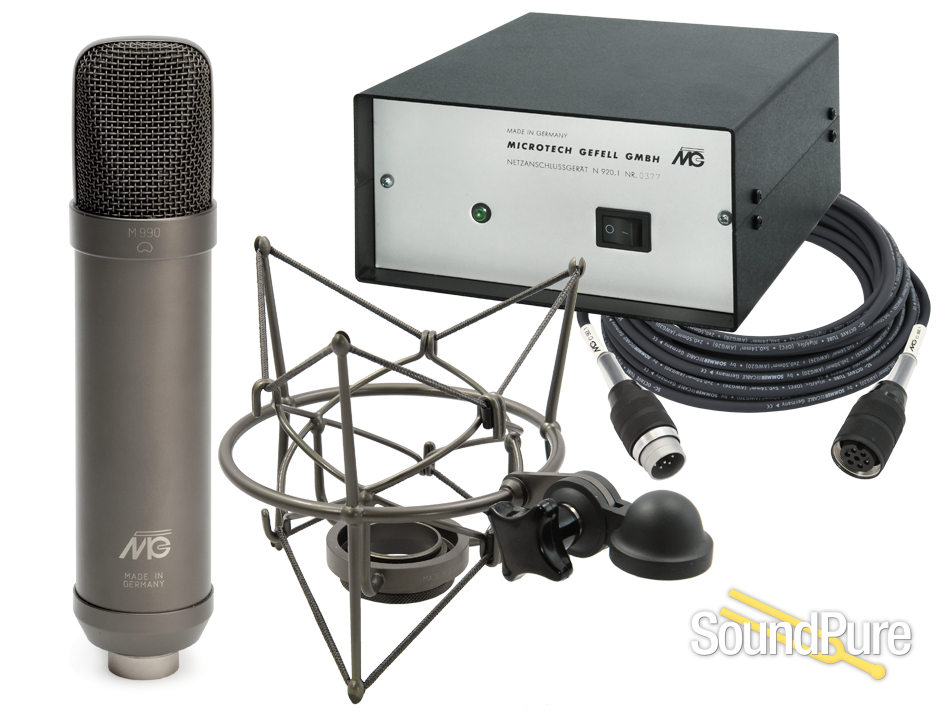

For maximum rejection against vibration borne noise, the M990 is supplied with the EA92 deluxe elastic suspension. This is fixed to the body via the machined housing, providing secure retention of the mic, no matter what position. An optional swivel mount and swivel mount cable is also available. A 7-pin Tuchel connector and cable assembly connects the mic to the power supply, which then feeds the XLR output. The M990 utilizes the AES standard with pin-2 hot and the unique circuit design allows one to drive cables to 50 meters (150feet). This distance may be extended by increasing the heater voltage inside the M920.1 power supply with a simple service shop adjustment. Furthermore, switching the supply from 110V to 220V operation is a simple matter of rotating the fuse housing.

The M990 is characterized with an extended response with a slight presence rise. This allows the engineer to take full advantage of the proximity build for added body to a voice, while rendering more air and harmonic detail. This makes the M990 ideal for voice and solo instruments, while being equally impressive for orchestra and ensembles.



Interpretation

The Gefell M990's Large gold diaphragm and state-of-the art capsule amplifier result in the highest sensitivity and maximum spectral response at all frequencies. This, combined with outstanding signal-to-noise performance, works to the benefit of the most demanding 24bit/96kHz digital recording.

The M990 is ideally suited for both voice and instrument and is particularly impressive in difficult acoustic environments. It comes complete with power supply, interconnect cable, and deluxe shock mount, and its own hand crafted dovetailed wood storage case.
