From Josephson Engineering

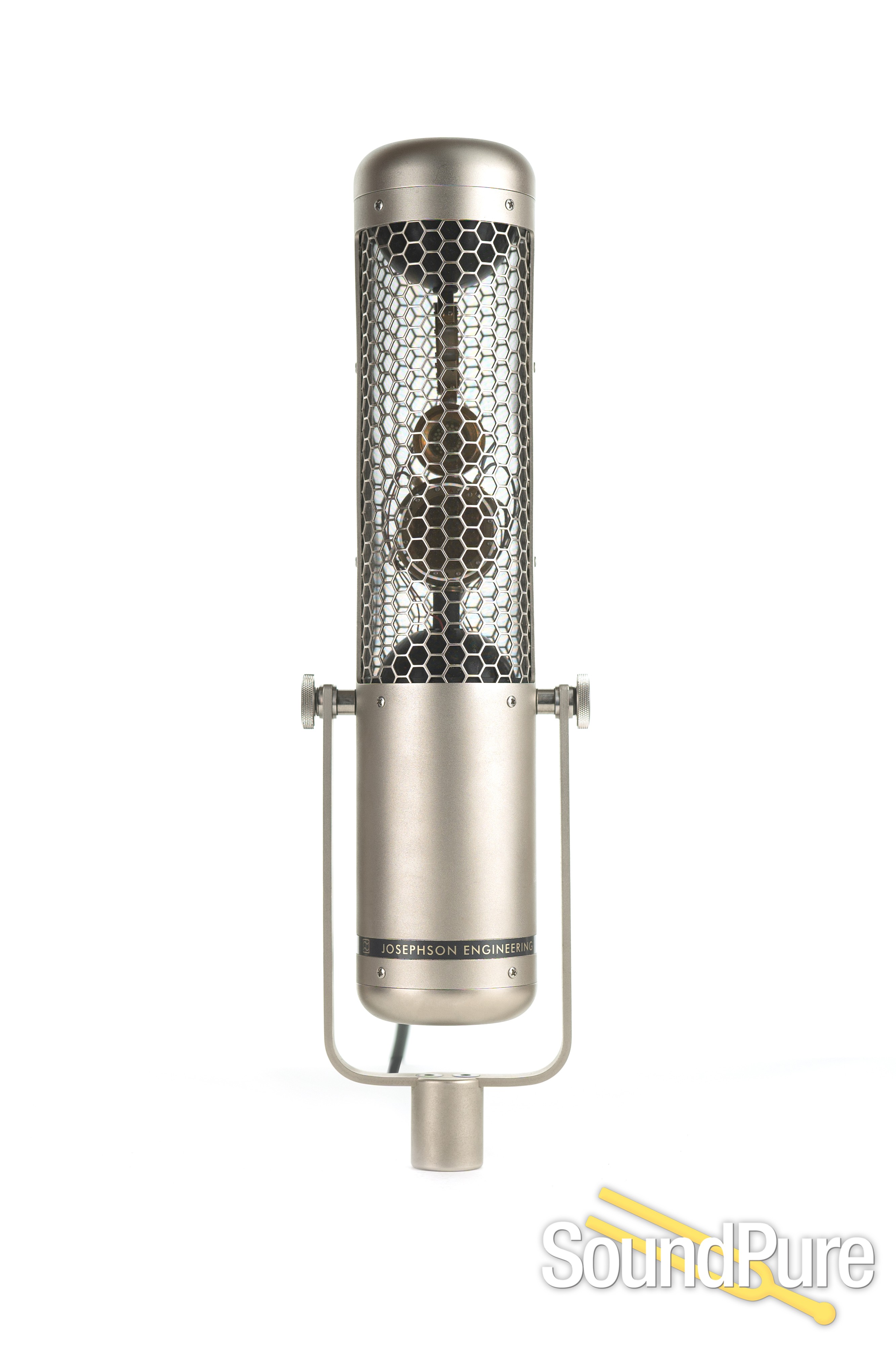

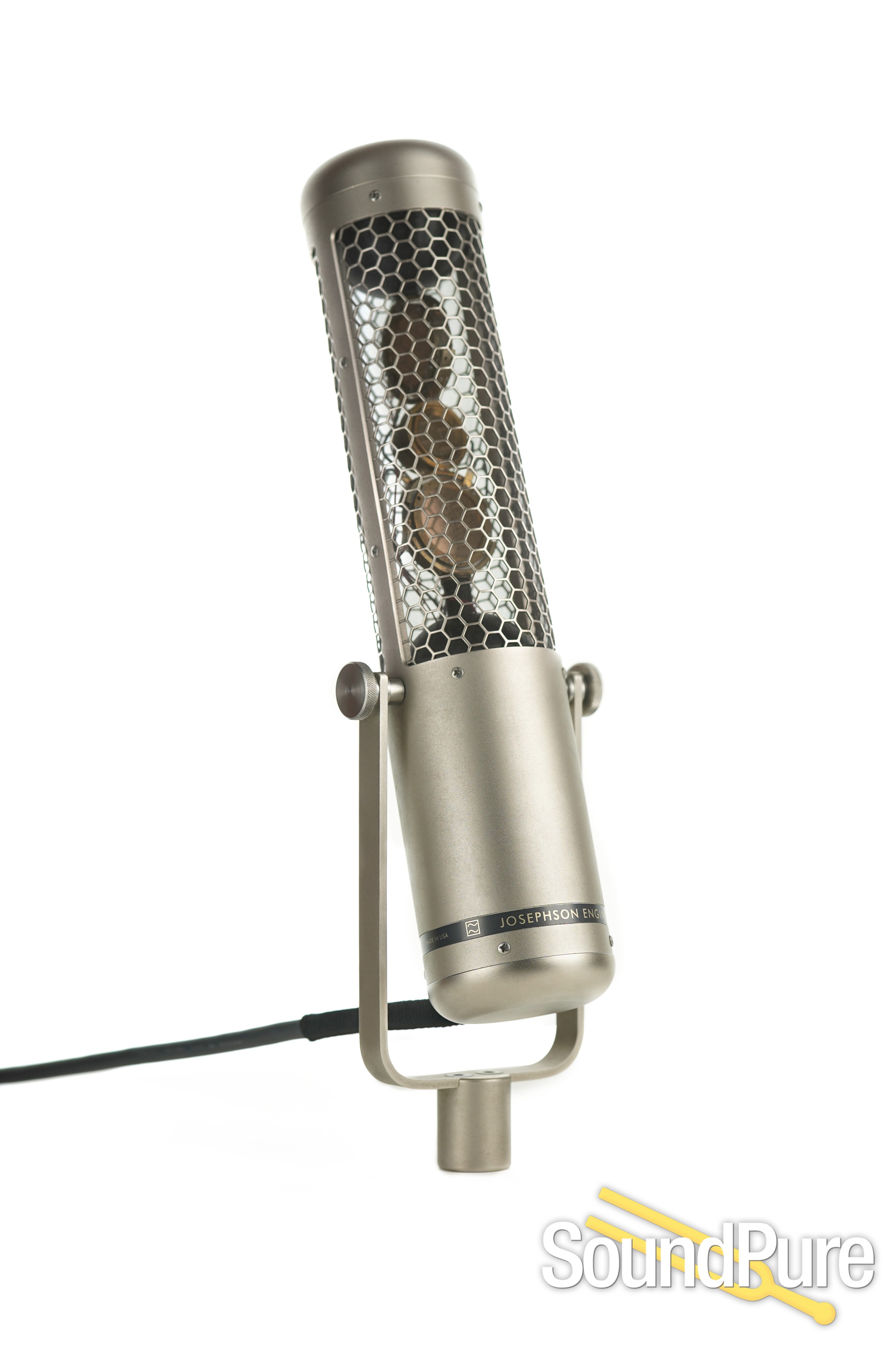

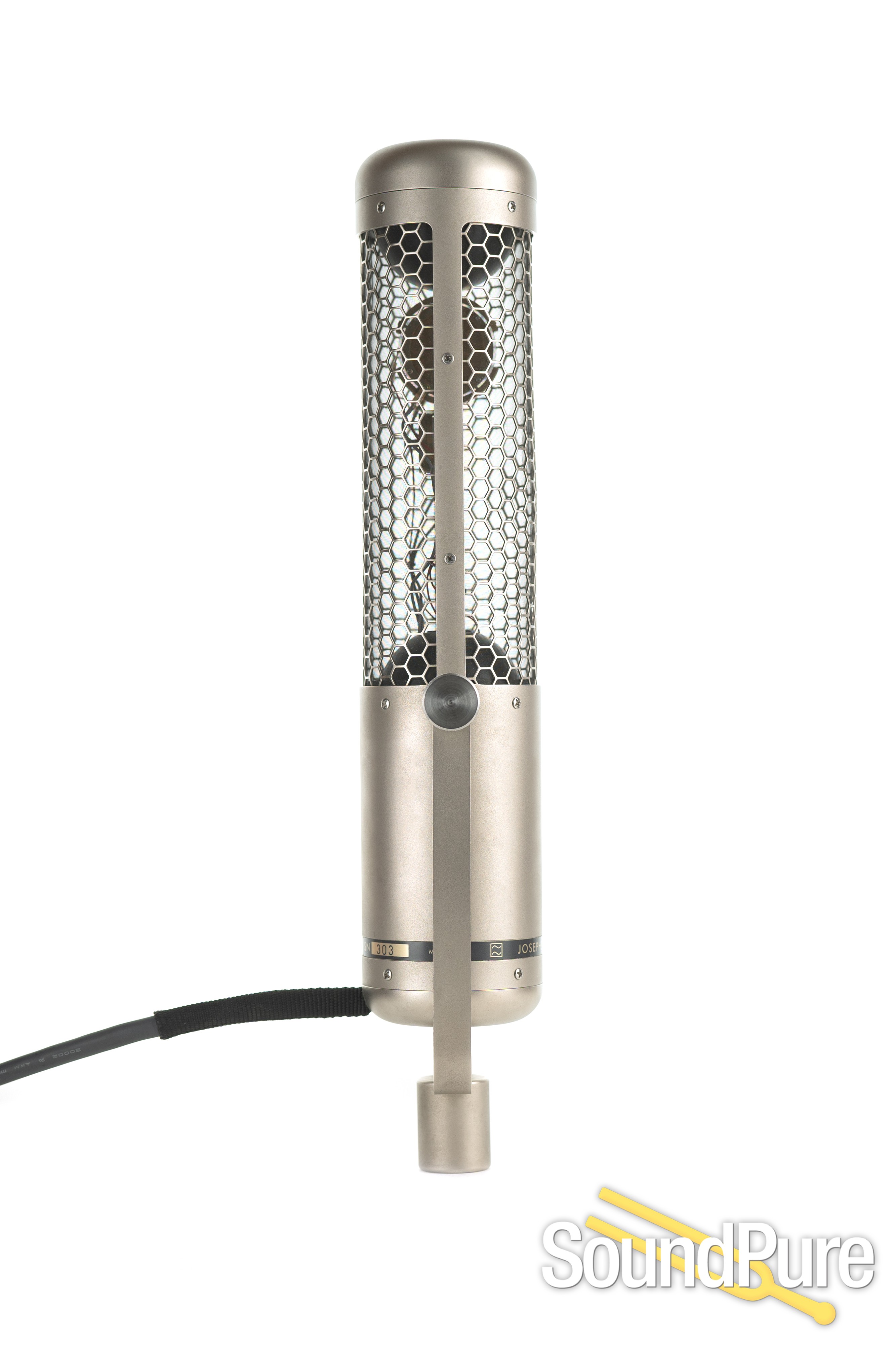

Series Seven microphones provide unprecedented flexibility, as the directional pattern of the mic can be adjusted in use, during or after recording. C700 microphones include omni/pressure and figure-8/gradient capsules, each with a discrete output. The signals can be recorded on separate tracks, so the pattern can be selected in mixdown. Pattern control is only one advantage of this technique. Applying different equalization or dynamic control to the capsule signals makes entirely different mic characteristics for instance the warmth of a gradient mic used close up for vocals might be combined with the transparency of a pressure mic in the highs, by rolling off the high frequencies in the gradient signal and the lows in the pressure signal before they are combined.

The C700S microphone has three capsules; an additional side-facing figure-8 capsule is added to the two in the C700A. Any coincident stereo pickup can be derived from mixing these three signals together, and like the C700A, the signals can be recorded individually and all aspects of image width and pattern control may be adjusted in the mixdown. With the three capsule signals, any number of microphone outputs may be created, each one pointed anywhere in the plane around the microphone.

The capsule assembly in the Series Seven is internally shock mounted, so that the mic may be attached directly to a stand through its yoke mount without any external accessories.

Specifications common to C700 series

Pressure and pressure gradient condenser microphone transducers

Variable directional pattern achieved by mixing output signals (see over)

Frequency range: 20-20,000 Hz ±2 dB from reference curve

Sensitivity: –41 dB ref 1 V/Pa (9 mV/Pa) for each signal

Overload sound pressure: 135 dB SPL at 1kΩ load for <1% THD

Equivalent noise level: 15 dB SPL, A-weighted

Power supply: P48 phantom, 4 mA per output

Diameter: 63mm (100 mm wide at yoke), length 328 mm (C700A), 365 mm (C700S)

Output connector: 5-pin XLR type (C700A), 7-pin XLR type (C700S)

Free 3-Year Warranty

Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.

Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →

Returns

This item is not eligible for the Try-Before-You-Buy 48-hour audition. Standard return policy applies — see Terms & Conditions, Section 18 for details.

Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$8,850
