Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box.

The DL32 provides 32 MIDAS PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

MIDAS - The Legend in Sound Quality

Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary consoles, such as the XL4 and Heritage H3000 have quickly become industry standards.

We have earned an impeccable reputation due to our no-compromise approach to audio and build quality, and in particular for our Award-winning Mic Preamps, which are considered by industry experts as the industry’s best-sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

Massive Connectivity

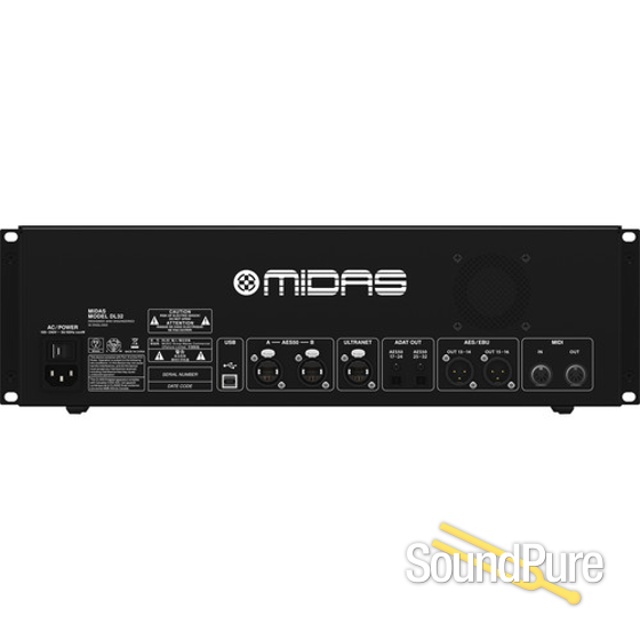

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the builtin AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to TURBOSOND iQ Series loudspeakers and the BEHRINGER POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.

Standalone Snake Mode

The DL32 was initially designed with our flagship M32 Digital Mixing Console in mind, but any mixing board with AES50 networking capability can still tap into the DL32’s powerful feature set. So even if the gig calls for an analog board, you can quickly assemble a couple of DL32 and XL48 to create a high-performance, lightweight 32 x 16 digital snake – with full remote preamp control.

• 32 award-winning MIDAS PRO microphone preamplifiers with switchable +48 V phantom power
• 16 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
• Two AES-3 ports (AES/EBU), e.g. for directly connecting PA system controllers with digital inputs
• Remote operation up to 100 m via CAT5/5e cable
• MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
• Features Neutrik etherCON AES50 and ULTRANET network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Mute-All-Inputs function for quietly patching any inputs on stage
• 3-Year Warranty Program
• Designed and engineered in England
