From TK Audio

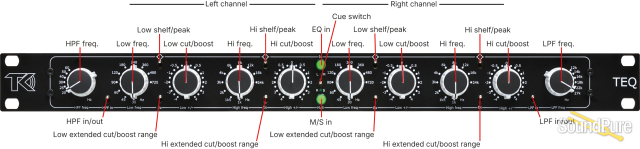

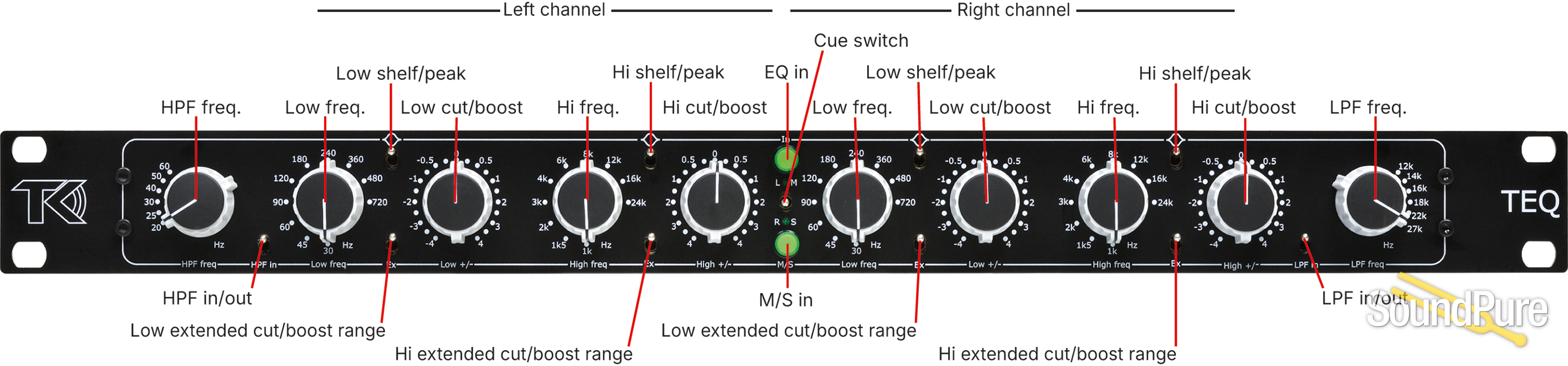

- Two bands with 10 frequencies each
- Peak/ Shelving select on each band
- Cut/boost with up to 0.25dB resolution
- Selectable extended cut/boost range up to +/-8dB
- HPF and LPF with 6 frequencies each
- M/S function
- Cue switch for monitoring of left/right or mid/side channels

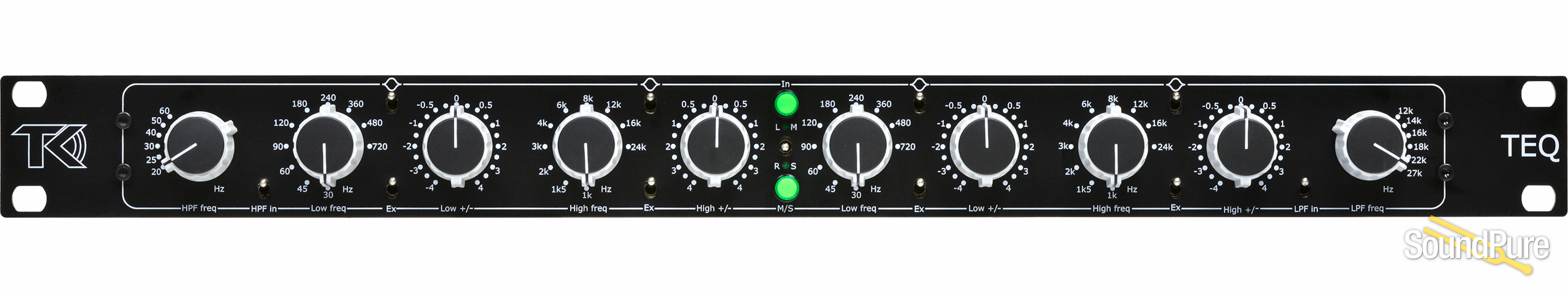

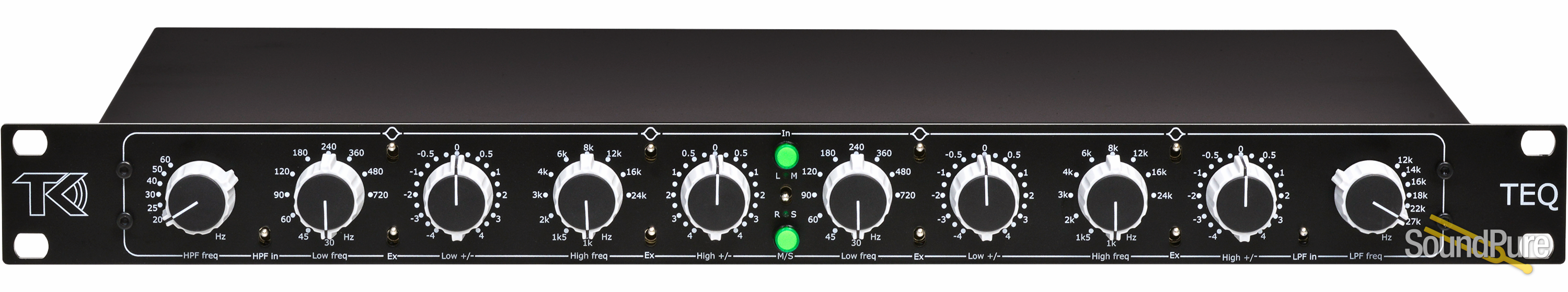

The TK Audio TEQ is a dual-mono EQ based on the classic Baxandall circuit from the 1950s, loved by engineers for its smooth and natural sound.
With 21-position cut/boost switches, selectable peak/shelving, and 10 frequencies for each band, the TEQ allows the user to fine-tune the sound with cut/boost down to 0.25dB steps at the initial positions. The cut/boost controls are provided with an extended range switch for a maximum range up to +/-8dB.
The HPF and LPF use 12dB filters with 6 frequencies each and common controls for left/right channels.
An M/S function is provided so that you can process Mid and Side with different EQ settings. Features
Low frequencies 30/45/60/90/120/180/240/360/480/720 Hz Switch for Shelf or peak mode High frequencies 1k/1.5k/2k/3k/4k/6k/8k/12k/16k/24kHz Switch for Shelf or peak mode
Cut/Boost +/- 0.25 dB/0.5 dB/0.75 dB/1 dB/1.5 dB/2 dB/2.5 dB/3 dB/3.5 dB/4dB With Ex (extended range) activated, the maximum cut/boost range is extended to +/-8 dB (the steps are not exactly x2)
HPF 12dB/octave
20Hz /25Hz /30Hz /40Hz /50Hz /60Hz
The HPF uses a single control for both channels.
LPF 12dB/octave 12kHz /14 kHz / 16 kHz /18 kHz /22 kHz /27 kHz
The LPF uses a single control for both channels.
Cut and boost, HPF and LPF use rotary switches with gold contacts. Low and Hi band frequencies are selected with relays.
M/S function
Lets you adjust the Mid and Side channels separately.
Cue switch Allows the use to cue Left or Right channel or Mid and Side channels if M/S function is active. Two green LED’s are provided to see if the cue switch is active.
Super-low noise and harmonic distortion, and no electrolytic capacitors in the audio path. Extra-wide audio bandwidth
- Input impedance: 20kohm
- Max input level: +27dBu
- Output impedance: 68 ohm
- Max output level: +27dBu
- Frequency response with cut/boost at 0dB: 20Hz-80kHz
- THD+N at 0dBu with cut/boost at 0dB: 0,0005%
- THD+N at +20dBu with cut/boost at +20dBu: 0,0005%
- S/N: 95dB
- Dynamic range: 122dB
- Power consumption: 11VA
- Voltage: 115v or 230v selected via an internal voltage selector.
