On Sale
Free Shipping
Free 3-Year Warranty
From Universal Audio
Apollo Twin USB High-Resolution Desktop Music Production for Windows.
With its class-leading resolution and Realtime UAD Processing, Apollo Twin USB sets the standard for desktop music production for Windows-based systems. This 2x6 USB 3 audio interface allows you to record with near-zero latency through the full range of UAD Powered Plug-Ins — ingeniously merging classic analog tones with cutting-edge features.
Key Features
- World-class 24-bit/192 kHz audio conversion
- Realtime UAD Processing - track through vintage Compressors, EQs, Tape Machines, and Guitar Amp plug-ins with near-zero latency
- USB 3 connectivity for Windows-based systems
- Unison™ technology for stunning models of classic mic preamps and stompboxes
- Includes UAD-2 DUO DSP Processing onboard
- 2 premium mic/line preamps; 2 line outs; front-panel Hi-Z instrument input and headphone output
- Digitally controlled analog monitor outputs for full resolution at all listening levels
- Uncompromising analog design, superior components, and premium build quality throughout
- Includes "Realtime Analog Classics" UAD plug-in bundle
Record and Mix with Stunning 24-bit/192 kHz Sound Quality
With the highest dynamic range and lowest noise of any desktop interface, Apollo Twin USB gives you stellar 24-bit/192 kHz sound and breathtaking clarity.
Its premium mic preamps and class-leading conversion translate into rich three-dimensional recordings with exceptional depth and punch. Digitally controlled analog monitor outputs provide full resolution audio at all listening levels — letting you create better mixes in real-world environments.
A Complete Analog Studio with Realtime UAD Plug-In Processing
Imagine having access to a classic analog recording studio, right on your desktop. Apollo Twin USB lets you record and mix through the full range of UAD Powered Plug-Ins — including vintage EQs, compressors, reverbs, tape machines and more — at near-zero latency, regardless of your audio software buffer size. The key to its analog magic is onboard UAD-2 DUO DSP Processing, which powers the UAD plug-ins while reducing the strain on your host CPU. To get you started, Apollo Twin USB includes the "Realtime Analog Classics" plug-in bundle.
Track Through Classic Preamps Using Unison™ Technology
Unison technology allows Apollo’sTwin USB’s mic preamps and front-panel DI to sound and behave like the world's most sought-after tube and solid state preamps, guitar amps, and stompboxes — including their all-important impedance, gain stage "sweet spots," and circuit behaviors. Based on breakthrough integration between Apollo’s analog inputs and its onboard UAD processing, Unison lets you track through a range of colorful emulations from Neve, API, and Marshall with amazing tone.

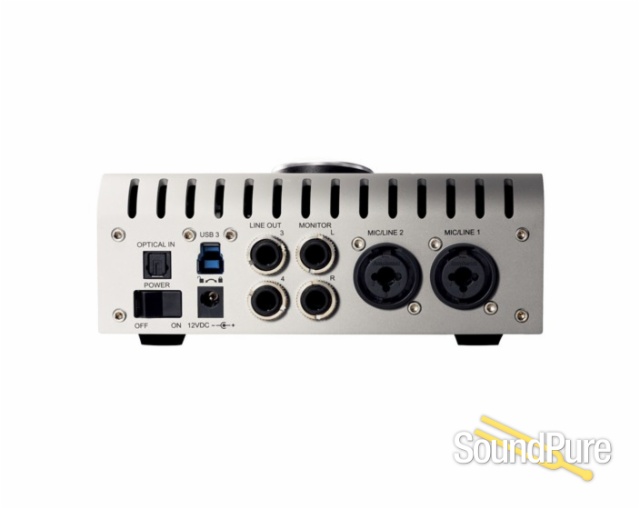

Professional I/O Connections
Apollo Twin USB is a 2x6 interface with two class-leading mic/line preamps, two analog line outputs, two digitally controlled analog monitor outputs, and up to eight additional channels of digital inputs via Optical connection. Its conveniently located Hi-Z instrument input and headphone jack allow you to capture inspiration the moment it strikes.
A Sleek New App
Console 2.0 is Apollo Twin USB’s software control interface. Its intuitive, analog console-style design provides realtime tracking and monitoring with UAD Powered Plug-Ins, Channel Strip presets, Drag & Drop functionality, dynamically resizable windows, and more.
Easy to Use with Any DAW
Apollo Twin USB is compatible with major DAWs, including Pro Tools, Cubase, Ableton Live, and more — allowing seamless integration no matter what recording software you use.
Software
Realtime Analog Classics Bundle
The Realtime Analog Classics plug-in bundle contains the essential UAD Powered Plug-Ins to get you started tracking and mixing with the world's best analog emulations, including guitar and bass amp emulations from Softube, as well as UA’s groundbreaking 610 Tube Preamp and EQ plug-in.
The Realtime Analog Classics Bundle is included free with your Apollo Twin USB.
UA 610-B Tube Preamp and EQ
The 610-B Tube Preamp and EQ plug-in will impart your tracks with the same legendary warmth and character of the classic hardware unit used to track everyone from Duke Ellington to Coldplay. By emulating the entire signal path, including tube amplifiers, transformers, and circuit nonlinearities, the 610-B Tube Preamp and EQ plug-in injects glowing detail and saturation to any signal — whether you’re re-amping or tracking through the 610-B via Universal Audio’s breakthrough Unison™ technology — the first and only way to truly emulate classic analog mic preamp gain stage “sweet spots,” and component-level behaviors at the input stage.
Raw Distortion Plug-In
Modeled from a vintage early-’80s Pro Co Rat, the Raw Distortion plug-in delivers all the gritty dynamic raunch of the legendary stompbox. And with Unison™ technology, you can plug in to Apollo's preamps and experience the same circuit interaction, gain range, and clip points for the true tone, feel, and response of the original hardware.
Softube Amp Room Essentials
Featuring two plug-ins — the Amp Room Half-Stack and the Bass Amp Room 8x10 — Amp Room Essentials gives you guitar and bass tones that can deliver the goods in any genre. Based on a vintage British half-stack, Amp Room Half-Stack yields legendary slabs of molten distortion while Bass Amp Room 8x10 offers powerful tones and features like a blend-able DI. Both plug-ins tout adjustable mic placement for fine-tuning your tones whether you’re recording in real-time or re-amping.
1176SE/LN Classic Limiting Amplifiers (Legacy)
Get classic, ultra-fast FET compression from the world’s most recognized compressor. The 1176 will impart punch, presence, and character as well as its signature distortion overtones on drums, vocals, guitars, and bass. The 1176 has graced countless recordings, from Led Zeppelin, the White Stripes, and the Red Hot Chili Peppers.
Pultec Pro Equalizers (Legacy)
Universal Audio’s Pultec Pro Legacy plug-in combines the Pultec MEQ-5 Midrange Equalizer and the Pultec EQP-1A Program Equalizer, two of the most sought-after hardware EQs, into a single plug-in. The MEQ-5 EQ section allows you to boost and cut midrange bands with the same silky smoothness and personality of the original hardware while the EQP-1A imparts warm analog character to a single track or an entire mix — even when bypassed.
Teletronix LA-2A Classic Leveling Amplifier (Legacy)
With its gentle, program dependent optical compression and meticulously designed tube amplifier, the LA-2A is the go-to compressor for professional mixers around the world — especially for vocals. Incredibly easy-to-use Peak Reduction and Gain controls gives you the ideal optical compression sound for vocals, bass, drums and more.
Precision Mix Rack Collection
Featuring the Precision Channel Strip, Precision Reflection Engine, and Precision Delay Modulation plug-ins, the Precision Mix Rack Collection offers four modern, high-fidelity plug-ins for recording and mixing. Powerful and intuitive, the Precision Mix Rack Collection offers up an impressive tool set — perfect for beginners and seasoned professionals alike.
RealVerb Pro
RealVerb Pro is a flexible, natural sounding reverb that is based on our own unique set of algorithms. Allowing you to design the room just as you hear it, the RealVerb Pro goes beyond the barriers of simply big/small or dark/bright, giving you our trademark, distortion-free, smoothing diffusion control and ultra-long reverb tail.
Audio Interface
-Sample rates up to 192 kHz* at 24-bit word length
-Up to 10 x 6 simultaneous input/output channels
--Two channels of analog-to-digital conversion via:
- Two balanced mic/line inputs
- One Hi-Z instrument input
--Six channels of digital-to-analog conversion via:
- Digitally-controlled stereo monitor outputs
- Stereo headphone outputs
- Line outputs 3-4
--Up to eight channels of digital inputs via:
- Eight channels ADAT optical with S/MUX for high sample rates, or
- Two channels S/PDIF optical with sample rate conversion
-64-bit device drivers
Microphone Preamplifiers
- Two high-resolution, ultra-transparent, digitally-controlled analog mic preamps
- Front panel and software control of all preamp parameters
- Low cut filter, 48V phantom power, 20 dB pad, polarity inversion, and stereo linking
Monitoring
- Digitally-controlled analog monitor outputs maintains highest fidelity
- Independently-addressable stereo headphone outputs
- Independently-addressable line outputs 3-4 can be used for additional cue mix
- Front panel control of monitor levels and muting
UAD-2 Inside
- Two (DUO) SHARC DSP processors
- Realtime UAD Processing on all analog and digital inputs
- Same features and functionality as other UAD-2 devices when used with DAW
- Includes UAD Powered Plug-Ins “Realtime Analog Classics” bundle
- Complete UAD Powered Plug-Ins library is available online
Software
Console application:
- Enables tracking and/or monitoring with Realtime UAD Processing
- Remote control of Apollo Twin features and functionality
- Virtual I/O for routing DAW tracks through Console
- Two independent stereo Auxiliary buses
Console Recall plug-in:
- Saves Apollo Twin configurations inside DAW sessions for easy recall
- Facilitates control of Apollo Twin USB's monitoring features from within the DAW
- VST, RTAS, AAX 64, plug-in formats
UAD Meter & Control Panel application:
- Configures global UAD settings and monitors system usage
Other
- Attractive and durable desktop form factor
- Locking power supply prevents accidental disconnection
- Easily updateable firmware
- One year warranty includes parts and labor
System Requirements
Apollo Twin USB Systems
UAD Powered Plug-Ins version 8
- Microsoft Windows 7 or 8.1, 64-Bit Edition
- Available SuperSpeed USB 3 port*
- Intel "i" series or Xeon processor
- 6 gigabytes available storage
- Internet connection to download software and authorize UAD plug-ins
- Compatible VST, RTAS, or AAX 64 plug-in host DAW software
Specifications
All audio specifications are typical performance unless otherwise noted, tested under the following conditions: 48 kHz internal sample rate, 24-bit sample depth, 20 kHz measurement bandwidth, with balanced inputs and outputs.
-System
-- I/O Complement
- Microphone Inputs: Two
- Analog Line Inputs: Two
- Hi-Z Instrument Inputs: One
- Analog Line Outputs: Two (independent mix buses)
- Analog Monitor Outputs: Two (one stereo pair, independent L/R mix buses)
- Headphone Outputs: One stereo pair (independent L/R mix buses)
- Digital Input Port: (TOSLINK optical) One (ADAT or S/PDIF, selectable)
- USB 3 Port: One
-- A/D – D/A Conversion
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
- Bit Depth Per Sample: 24
- Simultaneous A/D conversion: Two channels
- Simultaneous D/A conversion: Six channels
- Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz sample rate
- Analog Round-Trip Latency with up to four serial UAD Powered Plug-Ins via Console application: 1.1 milliseconds @ 96 kHz sample rate
-Analog I/O
-- Line Inputs 1 & 2
- Jack Type (combo mic/line balanced inputs): Female ¼” TRS Balanced
- Dynamic Range (A–weighting): 117.5 dB
- Signal-to-Noise Ratio (A–weighting): 117.5 dB
- Total Harmonic Distortion + Noise: –108 dBFS
- Common-Mode Rejection Ratio (CMRR): Greater than 60 dB (10’ cable)
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Input Impedance: 10K Ohms
- Gain Range: +10 dB to +65 dB
- Maximum Input Level (@ Minimum Gain): 18 dBV
- Maximum Input Level (@ Maximum Gain): –37 dBV
- Stereo Level Balance: ±0.05 dB
-- Microphone Inputs 1 & 2
- Jack Type (combo mic/line balanced inputs): Female XLR Balanced (pin 2 positive)
- Phantom Power (switchable per input): +48V
- Dynamic Range (A–weighting): 118 dB
- Signal-to-Noise Ratio (A–weighting): 118 dB
- Total Harmonic Distortion + Noise: –110 dBFS
- Equivalent Input Noise: –127 dB
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Common-Mode Rejection Ratio (CMRR): Greater than 70 dB (10’ cable)
- Default Input Impedance: 5.4K Ohms (variable via Unison preamp model)
- Gain Range: +10 dB to +65 dB
- Pad Attenuation (switchable per input): 20 dB (variable via Unison preamp model)
- Maximum Input Level (@ Minimum Gain, with Pad): 23.8 dBV
- Maximum Input Level (@ Maximum Gain, with Pad): –31.2 dBV
-- Hi-Z Input
- Jack Type: Female ¼” TS Unbalanced
- Dynamic Range (A–weighting): 117 dB
- Signal-to-Noise Ratio (A–weighting): 117 dB
- Total Harmonic Distortion + Noise: –101 dBFS
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Input Impedance: 1M Ohms
- Maximum Input Level (@ Minimum Gain): 10 dBV
- Maximum Input Level (@ Maximum Gain): –45 dBV
-- Line Outputs 3 & 4
- Jack Type: ¼” Female TRS Balanced
- Dynamic Range (A–weighting): 118 dB
- Signal-to-Noise Ratio (A–weighting): 118 dB
- Total Harmonic Distortion + Noise: –107 dBFS
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Stereo Level Balance: ±0.05 dB
- Channel Separation: Greater than 120 dB
- Output Impedance: 600 Ohms
- Maximum Output Level: 18 dBV
-- Monitor Outputs 1 & 2
- Jack Type: ¼” Female TRS Balanced
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Dynamic Range (A–weighting): 115 dB
- Signal-to-Noise Ratio (A–weighting): 115 dB
- Total Harmonic Distortion + Noise: –105 dBFS
- Channel Separation: Greater than 118 dB
- Stereo Level Balance: ±0.05 dB
- Output Impedance: 600 Ohms
- Output Gain Range: –96 dB to 0 dB
- Maximum Output Level: 18 dBV
- Operating Reference Level: +14 dBu, +20 dBu (selectable)
-- Stereo Headphones Output
- Jack Type: ¼” Female TRS Stereo (unbalanced)
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Dynamic Range (A–weighting): 113 dB
- Signal-to-Noise Ratio (A–weighting): 113 dB
- Channel Separation: Greater than 110 dB
- Total Harmonic Distortion + Noise: –101 dBFS
- Stereo Level Balance: ±0.11 dB
- Output Impedance: 10 Ohms
- Output Gain Range: –INF to 0 dB
- Maximum Output Power: 80 milliwatts into 600 Ohms
-Digital I/O
-- S/PDIF
- Connector Type: Optical TOSLINK JIS F05 (shared with ADAT)
- Format: IEC958
- Supported Sample Rates: (kHz) 44.1, 48, 88.2, 96
- S/PDIF Input Channels: Two (Stereo L/R)
-- ADAT
- Connector Type: Optical TOSLINK JIS F05 (shared with S/PDIF)
- Format: ADAT Digital Lightpipe with S/MUX
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 172.4, 192
- ADAT Input Channels @ 44.1 kHz, 48 kHz: 1 – 8
- ADAT Input Channels @ 88.2 kHz, 96 kHz: 1 – 4 (S/MUX)
- ADAT Input Channels @ 176.4 kHz, 192 kHz: 1 – 2 (S/MUX)
-- Clock Synchronization Sources
- Internal, S/PDIF, ADAT (digital clock sync source conditional per selected digital input type)
-Electrical
- Power Supply: External AC to DC
- AC Connector Type: Changeable blades (UL, VDE, UK, SSA, CCC)
- AC Requirements: 100V – 240V AC, 50 – 60 Hz
- DC Connector Type: Male plug, 2.1 mm x 5.5 mm, center positive
- DC Requirements: 12 VDC, ±5%
- Maximum Power Consumption: 12 Watts
-Environmental
- Operating Temperature Range 32º to 95º Fahrenheit (0º to 35º Celsius)
- Storage Temperature Range –40º to 176º Fahrenheit (–40 to 80º Celsius)
- Operating Humidity Range 20% to 80%
-Mechanical
-- Dimensions
- Width: 6.31”
- Height: 2.60”
- Depth, Chassis Only: 5.86”
- Depth, Including Knob & Jack Protrusions: 6.20”
- Shipping Box: (Length x Width x Height) 8” x 8” x 5.5” (20.32cm x 20.32cm x 13.97cm)
-- Weight
- Shipping Weight (with box & accessories): 3.85 pounds
- Weight (bare unit): 2.35 pounds
-- Package Contents
- Apollo Twin USB DUO Unit
- External Power Supply with (4) changeable AC connectors supporting USA, Europe, UK, Australia, China
- URL Card
- SuperSpeed USB 3.0 cable
