From Grace Design
-Multiple 5.1 and stereo analog inputs
-24bit/192kHz digital 5.1 and stereo inputs- AES3, S/PDIF, ADAT and TOSLINK
-s-Locktm phase lock loop word clock regeneration for ultra-low jitter and rock solid digital stability
-Precision main and headphone level controls with a 100dB range in 0.5 dB steps

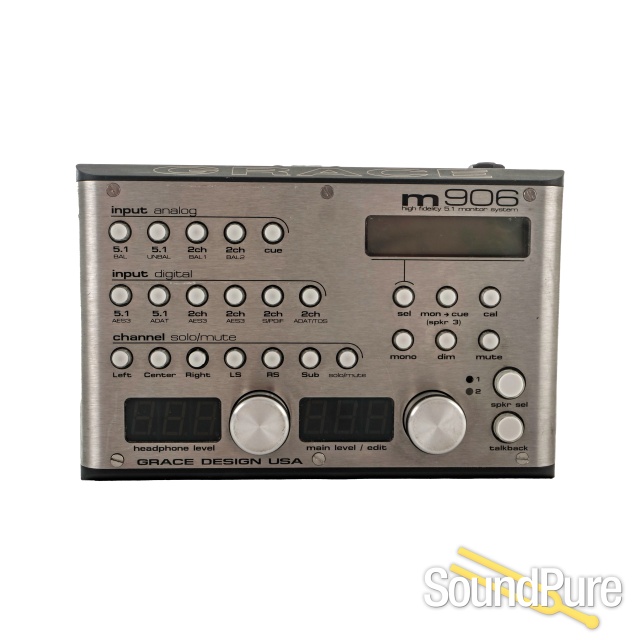

-All controls built into an elegant, convenient desktop remote control unit

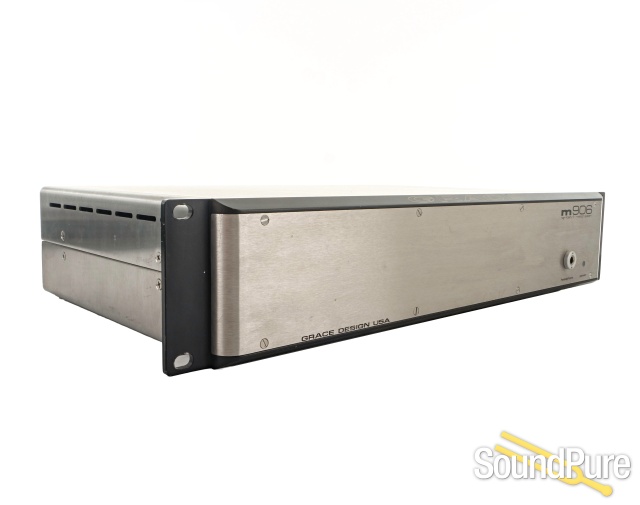

-All I/O and audio are routed in a 2U rack mount mainframe with an external 1U 1/2 rack power supply
-Multiple speaker set selection- two surround sets, up to 3 stereo sets
-High current audiophile headphone amplifier built in- one output jack on remote control unit and one on the mainframe unit
-Complete system level calibration (inputs, outputs, inter-channel balance, dim) and individual channel solo/mute;
-Balanced talkback microphone input and activation switch with additional external foot switch control jackp
-Fixed level 5.1 DAC output for direct digital transfers;
- Input Impedance:
- 30 kOhms, Balanced
- 50 kOhms, Unbalanced
- Output Impedances:
- 300 Ohms, Balanced (Source Impedance)
- 1 kOhm, Balanced (Min. Load Impedance)
- 25 Ohms, Headphone Out (Min. Load Impedance)
- Sensitivity (0 VU): Not Specified by Manufacturer
- Maximum Input Level:
- +30dBu, Balanced
- +20dBu, Unbalanced
- Maximum Output Level:
- +15dBu (Low Gain Mode, Balanced)
- +27dBu (High Gain Mode, Balanced)
- +20dBu (Headphone Out, 25 ohm Load, Momentary)
- +13dBu (Headphone Out, 25 ohm Load, Continuous)
- Noise:
- -86dBu, High Gain Mode (20-22kHz Bandwidth, -20dB Gain)
- -96dBu, Low Gain Mode (20-22kHz Bandwidth, -20dB Gain)
- THD + N:
- Less than 0.001% (+20dBu Out)
- Less than 0.003% (+10dBu Out)
- Less than 0.009% (0dBu Out)
- Crosstalk:
- Less than 100dB @ 100Hz
- Less than 100dB @ 1kHz
- Less than 85dB @ 20kHz

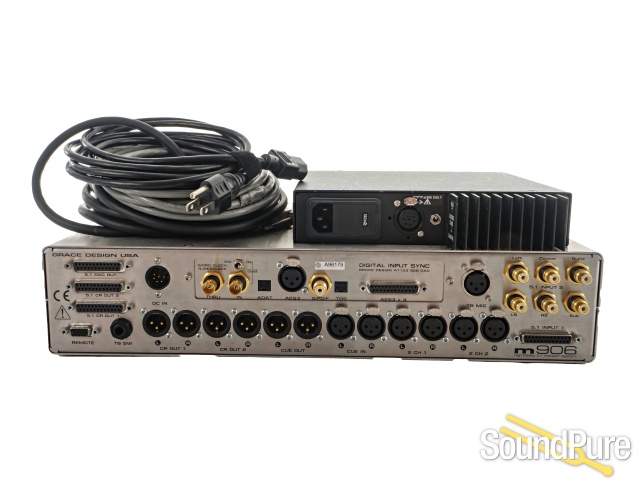

- Input Connections:
- 1 x BNC Word Clock/Super Clock In
- 1 x ADAT Input
- 1 x AES3 Digital Stereo XLR Female Input
- 1 x S/PDIF Stereo RCA Input
- 1 x TOSLink Optical Stereo Input
- 1 x AES3 Multi-Channel DB25 Female Connector (Tascam Pinout)
- 1 x XLR Talkback Mic Input with 48V Phantom Power
- 6 x Analog RCA Inputs
- 1 x DB15 Female Remote Connector
- 1 x 1/4" TRS Talkback Switch Jack
- 2 x XLR "Cue In" Connectors
- 4 x Balanced Analog XLR Inputs
- 1 x DB25 Female Connector for Balanced 5.1 Analog Input
- 1 x 6-Pin XLR Male DC Input
- Output Connectors:
- 1 x 5.1 DAC DB25 Female Output
- 2 x 5.1 CR Out DB25 Female Connectors
- 1 x Word Clock/Super Clock Thru BNC
- 4 x Stereo CR Analog XLR Outputs
- 2 x Cue Out XLR Connectors
- 1 x Front-Panel 1/4" Headphone Output

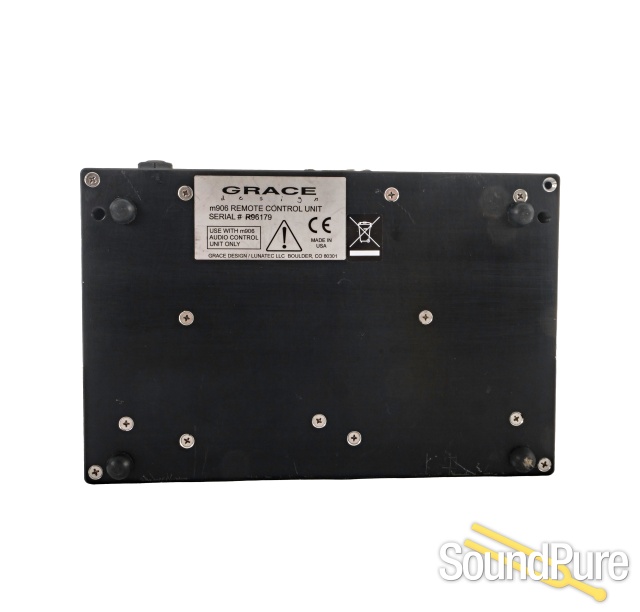

- Remote Unit:
- 1 x 1/4" Headphone Output
- 1 x DB15 Female Remote Connector
Meters
- Main Unit: 1 x Green Power LED
- Remote:
- 1 x Headphone Level Display
- 1 x Main Level/Edit Display
- 1 x System LCD for Displaying Status and Settings
- Talkback Mic:
- XLR Connector with 48V Phantom Power on Main Unit
- Control Switches on Main Unit and Remote
- Headphone Output:
- 1 x 1/4" on Main Unit Front Panel
- 1 x 1/4" on Remote Unit
Dimensions
- Main Unit: 17 x 10.5 x 3.5" (432 x 267 x 89mm)
- Remote: 5.25 x 8 x 1.6" (133 x 203 x 41mm)
- Power Supply: 8.5 x 8.5 x 1.7" (216 x 216 x 43mm)
Weight
- Main Unit: 14.1 lbs (6.4kg)
- Remote: 2.3 lbs (1kg)
- Power Supply: 6.5 lbs (2.9kg)
Packaging Info
- Package Weight
- 25.4 lb
- Box Dimensions (LxWxH)
- 26.5 x 18.8 x 11.8"
