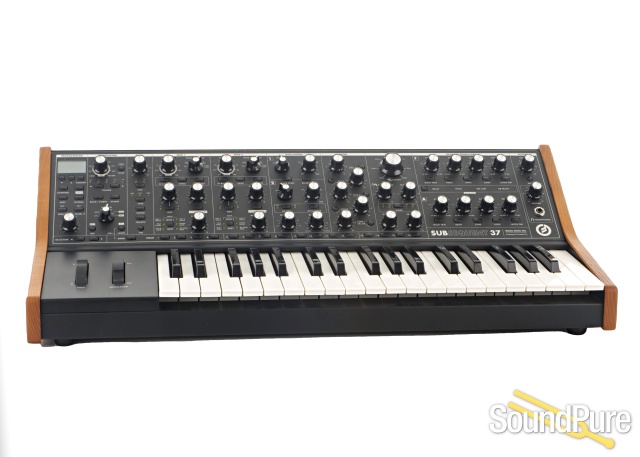

Moog Music Sub 37 Analog Synthesizer - Used

The Sub 37 is a limited edition (2-note) paraphonic analog synthesizer built on the award-winning Sub Phatty sound engine. Its panel features 40 knobs, 74 switches, and has a dedicated LCD display - p...

$1,330.00 or about $55/mo with Affirm Prequalify →

Sold — contact us for a similar item.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Try Before You Buy — 48-hour at-home audition. Love it, or send it back. Program details →

Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

Sound Pure's Take

The Moog Music Sub 37 might be the most versatile and best sounding synth on the market. It has the routing capabilities of a massive modular, but in a compact, intuitive desktop chassis. You still get the warm, smooth analog signal path, but the instrument is made a little more accessible by adding digital controls. For those familiar with the Moog Little Phatty Stage II, don't be fooled by the Sub 37's similar size and shape. This is an entirely different beast, and so much more evolved. Going back to knob-per-function design, which the LP began to stray away from, the user can easily manipulate both subtle and drastic parameters of sound, of which there are many. With all the knobs, switches, and buttons on the front, you are saved from excessive menu-diving that you often endure with other digitally controlled synths. As someone who worked at the factory, I calibrated and tested thousands of these units and really got to know the instrument on an intimate level. Here I will outline some of the more stand-out features. This being a "short" description of the 37, I'll try not to get too deep.

The most obvious new feature is the Duo Mode. With this mode engaged, the synth becomes duophonic, or as Moog calls it, "paraphonic". This allows oscillator 2 to play a separate note, designated as either the high or low note. This becomes really cool when you start using the mod busses on the 2 oscillators independently. You can also do some really interesting things with the sequencer when duo mode is engaged.

Another incredible feature of the Sub 37, and a first for Moog's current product line, is the built-in step sequencer, which is tied in with the arpeggiator section. Switch the pattern to REC (record) and play a sequence of notes, then switch to SEQ. Now you can hit any key to play back the sequence, transposing it based on the selected key. Also, the ON and LATCH buttons act as REST (silent step) and TIE (EG gate stays open between steps) for the sequencer in REC mode.

The Sub 37 also features an amazing amount of control over the filter section. The filter and amplifier EGs feature independent latch, loop, sync (to LFO, or MIDI clock), reset, and multi-trig.

The biggest selling point for me is the amount of modulation control this synth features. This is first "Phatty" to feature a 2nd modulation buss (previously only featured on the Voyager models), with 15 mod sources and any parameter as a programmable destination. Each mod buss features a 5-waveform LFO (2 LFOs being another first for the Moog product line) with an additional 10 programmable sources, high and low settings, ability to sync to the arpeggiator/sequencer or MIDI clock, and ability to be designated as the other's destination, for some sweet LFO on LFO action.

Tips and Tricks:

Destination programming is super easy: push and hold the MOD AMT knob and twist any other knob to set as your mod destination.
Push and hold any knob while twisting any other knob for instant pot-mapping.
In the arp/seq section, hold BANK and press LATCH to enter or exit STEP EDIT MODE, which shows each step of your sequence along the preset buttons. In this mode you can edit each step of the sequence: skip steps, add modulation to individual steps, shift the whole pattern, and more.
Latch and loop the filter EG, and, without syncing, you essentially have a third (filter-only) LFO. Tweak attack and decay to adjust the speed. You can also sync the filter loop to the arp/seq/MIDI clock, or assign it as a mod source.
Use the high settings on the LFOs and/or variable length EG loops to achieve some very intense FM synthesis.

All of this is just the beginning. The functionality of this synth is unparalleled, but as deep as the features go, it's still relatively easy to play, whether you come from the world of sound design or a more musical, keyboard oriented background.

From Moog Music

• Perform in Mono or Duo modes

• 37-note velocity sensitive keyboard w/ aftertouch

• 2 modulation busses w/ assignable source and destinations

• DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync

• 256 Presets -16 banks of 16 patches

• Syncable Arpeggiator and Step Sequencer

• Classic Moog Ladder Filter with resonance, MultiDrive, and selectable filter slopes.

The Sub 37's new features include Duo Mode, which allows oscillator 1 and oscillator 2 to be played independently, programmable arpeggiator/step sequencer, two modulation busses with assignable source and destination options, access to 256 presets, and a 37-note velocity sensitive keyboard with aftertouch.

A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback - which feeds the output of the filter directly back to the input of the mixer.

Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function.

SOUND ENGINE: 100% Analog

POLYPHONY: Selectable Monophonic or Paraphonic

KEYBED: 37 Note Semi-weighted with After Pressure

LCD: 128 X 64 pixel LCD with white backlight

CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity

SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback

OSCILLATOR CALIBRATION RANGE: 22Hz-6.8KHz. Note range at 8’ = 18 - 116

GLIDE MODULE: Assign to Osc1/Osc2/Both. Type - LCR, LCT, EXP, Gated, Legato

FILTER: 20Hz-20KHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive

TRANSPOSITION: +/- 2 Octaves

ARPEGGIATOR/SEQUENCER: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync, 64-note sequencer

LFO PANEL FEATURES: Hi/Low Range from .01Hz–1kHz, MIDI Sync, KB Reset

ENVELOPES: DAHDSR Envelopes with Multi-Trigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking.

PRESETS: 256 Presets - 16 Banks x 16 presets

MODULATION BUSSES

SOURCES: LFO (Triange, Square, Saw, Ramp, Sample & Hold), Filter EG/PGM

PROGRAMMABLE SOURCES:

Amp Env
Constant ON
Sine LFO
Noise LFO
Osc 1 Pitch
Osc 2 Pitch
Seq Note
Seq Vel
Seq Mod

DESTINATIONS:

Osc 1 & 2 Pitch (separate or both)
Filter
LFO Rate
VCA Level
Osc 1 & 2 Wave (separate or both)
Noise Level
EG Time/PGM

PROGRAMMABLE DESTINATIONS:

Filter Resonance
Filter Drive
Filter Slope
Filter Env Amount
Filter Keyboard Amount
Osc 1 Level
Sub Osc Level
Osc 2 Level
External In/Feedback Level
Osc 1 On
Sub Osc On
Osc 2 On
Noise On
External In/Feedback On
Arp Rate
Arp Clock Division
Arp Range
Arp Back/Forth
Arp Ends
Arp Invert
Arp Gate Length
Arp Run
Glide Time
Glide OSC Choice
Glide Type
Glide Gate
Glide Legato
Glide On
LFO 1 Clock Division
LFO 1 Range
LFO 1 Sync
LFO 1 Keyboard Reset
LFO 1 Keyboard Track
Mod 1 Pitch Amount
Mod 1 Filter Amount
Mod 1 Programmable Amount
Mod 1 Programmable Destination
LFO 2 Clock Division
LFO 2 Range
LFO 2 Sync
LFO 2 Keyboard Reset
LFO 2 Keyboard Track
Mod 2 Pitch Amount
Mod 2 Filter Amount
Mod 2 Programmable Amount
Mod 2 Programmable Destination
Osc 1 Oct
Osc 2 Sync
Osc 2 Keyboard Reset
Osc 2 Oct
Osc 2 Keyboard Control
Osc 2 DUO Mode
Osc 2 Freq
Osc 2 Beat Freq
Filter Env Attack
Filter Env Decay
Filter Env Sus
Filter Env Release
Filter Env Delay
Filter Env Hold
Filter Env Vel Amount
Filter Keyboard Track
Filter Env Multitriggering
Filter Env Reset
Filter Env Sync
Filter Env Loop
Filter Env Latch
Amp Env Attack
Amp Env Decay
Amp Env Sus
Amp Env Release
Amp Env Delay
Amp Env Hold
Amp Env Vel Amount
Amp Keyboard Track
Amp Env Multitriggering
Amp Env Reset
Amp Env Sync
Amp Env Loop
Amp Env Latch
Output Volume
Bend Up
Bend Down

I/0

AUDIO INPUT: 1xTS

AUDIO OUTPUT: 1xTS, 1xTRS Headphone with separate volume control

MIDI I/O: DIN In/Out, and MIDI over USB

CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate

POWER: 110VAC-240VAC Universal Power Supply with IEC connector

WEIGHT: 22lbs

DIMENSIONS: 6.75"H x 26.75”W x 14.75”D
