From Radial Engineering
- Active Reamp® designed for 500 series racks
- 100% discrete class-A electronics for best tone
- Transformer isolated to eliminate hum and buzz
- Easy access front panel jacks & controls

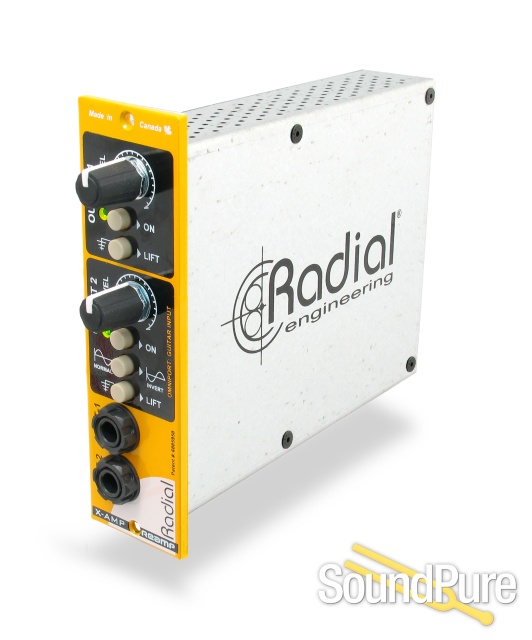

The Radial X-Amp™ is a 500 series module that lets you take a pre-recorded guitar track and send it back to amplifiers and effects so that you can tailor the sound to suit. The advantages of Reamping™ are many: when recording, the guitarist need only concentrate on the performance. Working out specific sounds and optimal mic placement can be done later. This eliminates hours of tiresome repetition while allowing the producer to adjust the character of the track as the production evolves.
Using the X-Amp is 'plug and play' easy to use. The design begins with an XLR balanced line level input located on the 500 series rear panel that feeds the X-Amp. To ensure the very highest fidelity, 100% discrete class-A circuitry is employed. The X-Amp unbalances and buffers the pre-recorded signal where it then feeds two transformer isolated hi-Z guitar level outputs. The ¼" jacks are front mounted for desk-top convenience and equipped with ground lifts to help eliminate hum and buzz caused by ground loops. Independent level controls enable you to adjust the drive going to each amp for optimal tone. Should one of the amps be out of phase, depressing the 180º quickly brings both in line.
The X-Amp Reamper™ works with guitars, basses, keyboards and even voice! You can send the signal through guitar effects pedals too. In fact the only thing holding you back is your imagination.
The Radial X-Amp…active Reamping™ made easy.
The X-Amp 500 is an active Re-amp™ device that interfaces the balanced line-level output from professional recording systems with guitar effects and amplifiers. Two active buffered high impedance outputs with active level controls connect to effect pedals and instrument amplifiers. Each output is transformer isolated to eliminate hum and buzz caused by ground loops. Output-2 includes polarity invert for achieving proper phase alignment between two amps. When installed in a Workhorse 500 series rack the user has access to the Omniport connector. The X-Amp's Omniport is configured as an instrument preamp allowing a guitar to connect and drive the amplifier outputs.
|
Specifications |
|
||
|
Circuit type: |
Class-A discrete, transformer coupled |
||
|
Power requirement: |
40mA, ±16VDC |
||
|

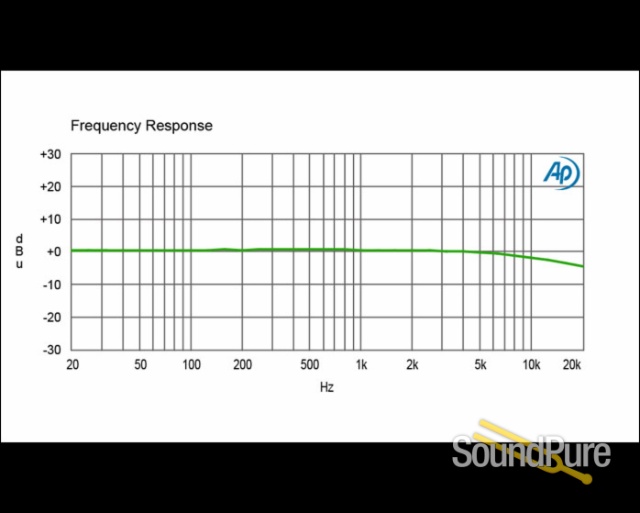

Frequency Response: |
20Hz~20kHz (adjusted for guitar signals -5dB@20kHz) w 100K Ω load |
||
|
|
XLR Input to XLR Output |
Omniport to XLR Output* |
XLR Input to ¼" outputs |
|
Voltage Gain: |
0dB ±0.5dB |
-3dB ±0.5dB |
-0.6dB ±0.5dB |
|

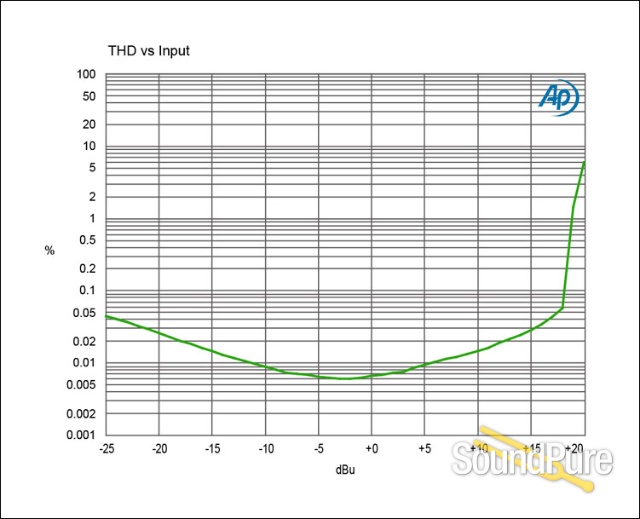

THD+N: |
<0.002% @ 0dBu |
<0.002% @ 0dBu |
<0.006% @ 0dB |
|
Noise: |
-114dB below 0dBu |
-95dB below 0dBu |
-98dB below 0dBu |
|
Intermodulation Distortion: |
<0.04% @ 0dBu input |
<0.005% @ 0dBu input |
<0.027% @ 0dB input |
|
Maximum input: |
+26dBu |
+20dBu |
+19dBu |
|
Features |
|
|
|
|
XLR input: |
+4dB, balanced female XLR, AES standard |
||
|
XLR input impedance: |
1.2k Ohms |
||
|
XLR output: |
Parallel 'thru-put' with XLR input, +4dB balanced |
||
|
XLR output impedance: |
600 Ohms |
||
|
¼ OUT-1 & OUT-2: |
Instrument-level (variable), unbalanced ¼", transformer isolated, |
||
|
¼ output impedance: |
3k Ohms |
||
|
Omniport*: |
Instrument-level input, unbalanced ¼" |
||
|
Omniport input impedance: |
220K Ohms |
||
|
General |
|
|
|
|
Shipping Weight: |
1.5lbs (0.7kg) |
||
|
Size: |
Standard 500 series rack format |
||
|
Warranty: |
3 years, transferable |
||
Specifications are subject to change without notice. The connectors referenced are typicaly found on most 500 series racks. *Refers to use with Radial Workhorse rack and mixer
